1. What is netloc?

The Portable Network Locality (netloc) software package provides network topology discovery tools, and an abstract representation of those networks topologies for a range of network types and configurations. It is provided as a companion to the Portable Hardware Locality (hwloc) package. These two software packages work together to provide a comprehensive view of the HPC system topology, spanning from the processor cores in one server to the cores in another - including the complex network(s) in between.

Towards this end, netloc is divided into three components:

  • Network topology discovery tools for each network type and discovery technique (called readers).
  • erging hwloc server topology information with that network topology information to produce a unified map of an entire computing system (even if that system includes multiple networks of different types, and servers that are on at least one of those networks).
  • A portable C API for higher-level software to query, traverse, and manipulate the abstract representation of the network topology and unified map (represented as a graph)
The network topology graph not only provides information about the physical nodes and edges in the network topology, but also information about the paths between nodes (both physical and logical, where available). Since the type of analysis (e.g., graph partitioning) required of this graph is often application-specific, netloc limits the amount of analysis it performs and leaves further analysis to higher level applications and libraries built upon this service. Additionally, the lsnettopo CLI tool can display and export this network topology information in a variety of formats (e.g., GraphML and GEXF file formats) providing developers with an additional mechanism to access the data for further analysis.

Similar to hwloc, netloc primarily aims at helping applications with gathering information about modern computing and networking hardware so as to exploit it accordingly and efficiently.


2. What types of networks does netloc support?

The project currently supports the following networks:

  • Ethernet networks using OpenFlow
  • InfiniBand networks

We are always working to support for additional networks. If there is a particular network technology or configuration that you would like us to support then please contact us on the development mailing list.


3. How do netloc and hwloc work together?

The hwloc project provides a detailed view of the server topology from compute cores to memory domains to PCI connected devices such as network cards. The netloc core readers have the ability to discover the network topology from the switches to each individual network card.

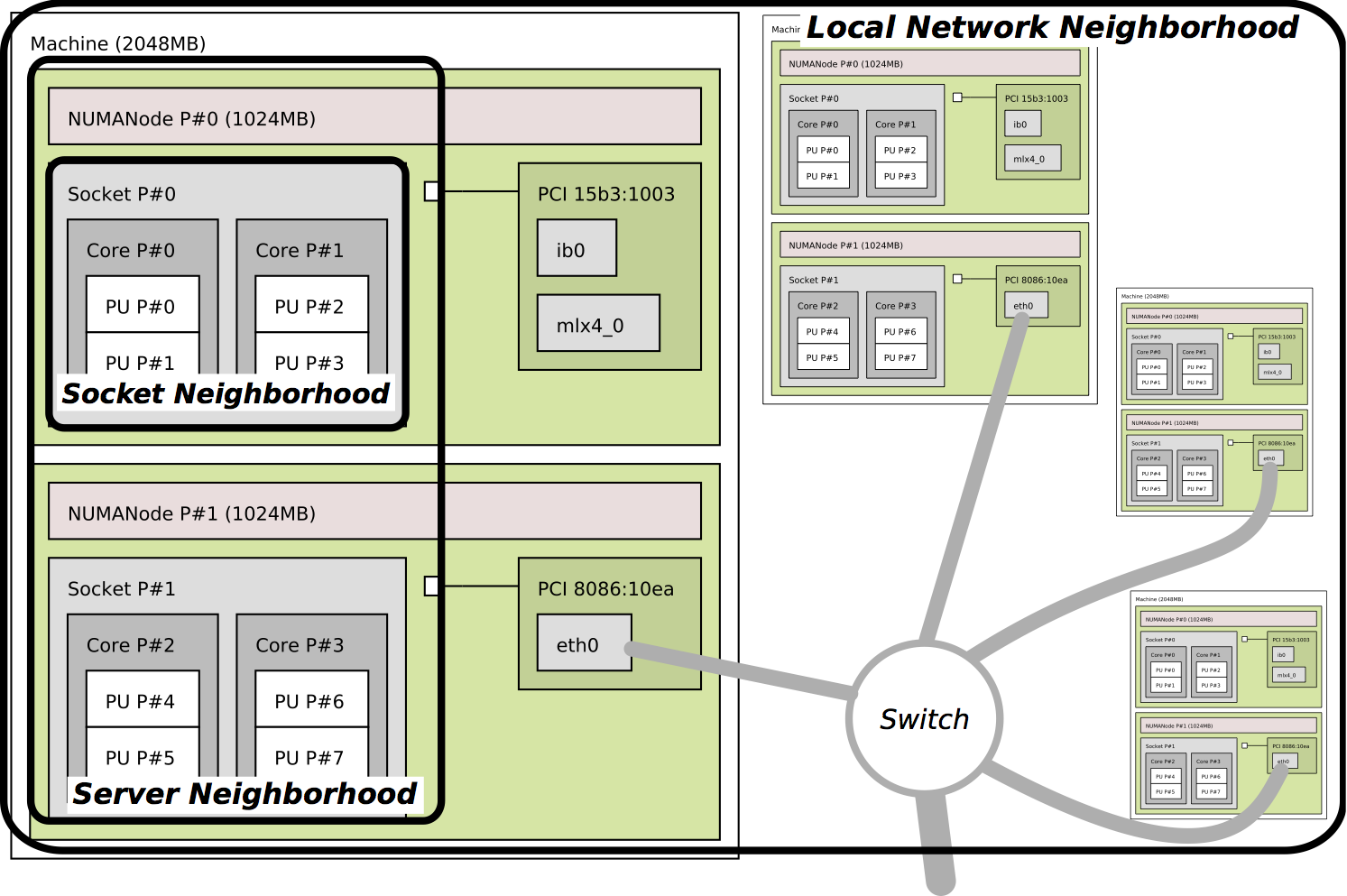

The netloc core readers themselves do not have enough information to determine which network cards belong to the same server. By mapping the network topology (discovered by the netloc core readers) with the hwloc server topology netloc is able to group the network cards installed into the same server box. The mapping joins these two topologies allowing the user to trace a path from a processor core on one server to the cores in another through the network(s) between them.


4. What is "mapping"?

The netloc project uses the term "mapping" when we are combining the network topology information with the server topology information. Specifically, mapping joins together the network cards in the hwloc topologies to their corresponding network interfaces in the netloc topology.

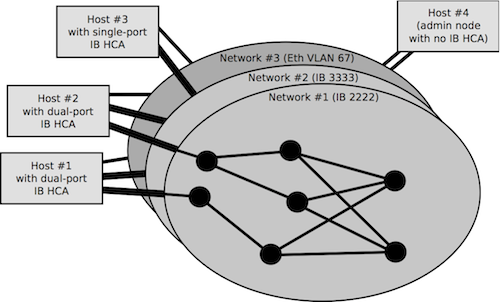

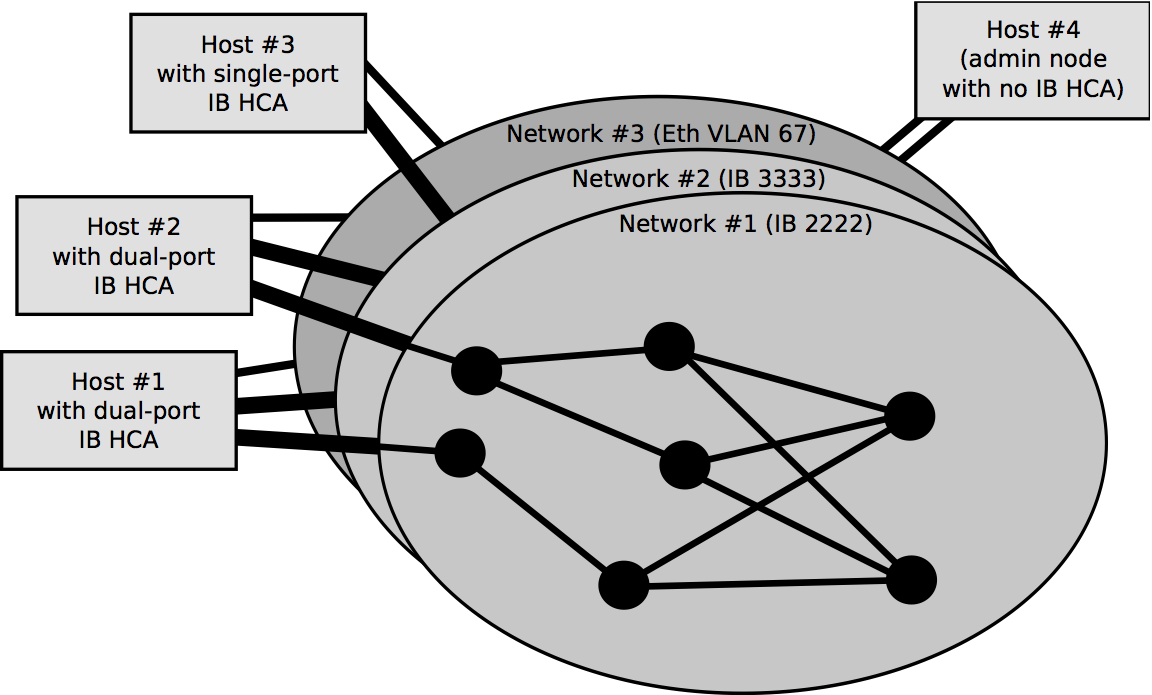

The mapping process also allows multiple types of and subnets within networks to be accessed together. For example, if you have a cluster that has an InfiniBand network and multiple Ethernet networks the mapping process will connect these network topologies to the appropriate network cards in the server topologies during the mapping phase. The end user can differentiate those two networks by identifiers on their associated data structures.


5. What is a "reader"?

A netloc "reader" is a command line tool that is used to access the network topology for a specific network type. As such there is at least one reader for each network type. The goal of the reader is to hide the discovery mechanism from the end user, access the topology information, and preserve that network topology information to a network independent format. The readers use the Data Collection API internally to save the network topology information into a netloc specific format.


6. How do I build netloc?

In general, all you need to do is expand the tarball, run the provided configure script, and then run "make all install". For example:

shell$ gunzip -c netloc-0.5.tar.gz | tar xf -
shell$ cd netloc-0.5
shell$ ./configure --prefix=/usr/local
<...lots of output...>
shell$ make all install

Note that the configure script supports a lot of different command line options. For example, the --prefix option in the above example tells netloc to install under the directory /usr/local/.

Consult the [README] file in the netloc tarball and the output of "configure --help" for specific instructions regarding netloc's configure command line options.


7. What version of hwloc does netloc require?

netloc requires a hwloc version of 1.4.2 or later. There are some addtional features in hwloc 1.8 and later that netloc can take advantage of as well (e.g., topology compression).


8. What is Jansson? Why does netloc require it?

Jansson is C library for managing JSON encoded data. Internally, netloc uses Jansson to store metadata and the network topology.

netloc requires Jansson version 2.3 or later. The --with-jansson(=DIR) configure option allows you to specifiy the location of the Jansson library. The (=DIR) part means that specifying the directory is optional.


9. What if I have multiple networks?

It not uncommon to have a cluster with multiple networks. Often an Ethernet network and another high-speed interconnect, or multiple of the same type of network. In these situations you will need to run the netloc reader for each of the networks in your system. The readers will produce network files for each network type. The mapping mechanism will allow the netloc project to join these networks together at specific server end points for that comprehensive view of the HPC system topology.


10. How do I discover the topology of an InfiniBand network?

There are a few tools involved in discovering the topology of an InfiniBand network. The following README provides more information about this process:
README.infiniband


11. What OpenFlow Controllers are supported by netloc?

We currently support the following OpenFlow controllers:


12. How do I discover the topology of an Ethernet network using OpenFlow?

There are a few tools involved in discovering the topology of an Ethernet network managed with an OpenFlow controller. The following README provides more information about this process:
README.openflow


13. How many API's are there? Which one(s) should I use?

The netloc project has four sections to its API, each listed below.

  1. Data Collection API
  2. Network Metadata API
  3. Network Topology Query
  4. Map API

If you are an application programmer you will probably want to focus on APIs #2, #3, and #4. If you are interested in developing a reader for a new network then you will want to look at API #1.


14. What is the Data Collection API?

This API is used by the readers to create the netloc-common .ndat topology files. This API can be used by other system services (e.g., resource managers, MPI) to produce .ndat files that represent a subset of the network, or to further annotate the network information.

Futher details can be found in the header linked below:
/include/netloc_dc.h


15. What is the Network Metadata API?

This API is used by the application to access high level information about the network types and subnets available on the system without pulling all of the network information. An application may use this API to search for a specific type of network or subnet, or to request information about all available networks.

Futher details can be found in the header linked below:
/include/netloc.h


16. What is the Network Topology Query API?

This API is used by the application to access specific information about nodes and edges in a single network subnet graph.

Futher details can be found in the header linked below:
/include/netloc.h


17. What is the Map API?

Futher details can be found in the header linked below:
/include/netloc_map.h


18. Are there any example programs that I can reference to get started?

The netloc repository contains a few examples in the tests sub-directory:
/tests

A few exemplars to get you started:

  • The map_paths.c test provides the path between two processors on separate servers.
  • The test_metadata.c demonstrates ways to use the Network Metadata API to discover sets of networks.


19. What are the netloc tools? How do I use them?

The netloc project creates a small collection of tools to help users collect and analyze the network topology. Each tool is listed below with a link to further documentation about how to use it properly.

  • Network Readers
  • lsnettopo
    A tool to display a textual representation of the network topology. It can also export the graph to some standard graph file formats.
  • netloc_ib_extract_dats
    A tool to assist in the extraction of netloc data from raw InfiniBand data. (see this FAQ for more details).
  • netloc_ib_gather_raw
    A tool to assist in the gathering of raw InfiniBand data. (see this FAQ for more details).
